The second-generation smart lock solution is our follow-up to the first-generation smart lock solution, developed out of a strong commitment to data security at the edge. A smart lock is the last line of defense for every household, and its fundamental purpose comes down to one thing: security. That is why the second-generation solution integrates an energy-efficient dual-core Cortex®-M33 processor with TrustZone, the high-security real-time PRINCE encryption peripheral and the SRAM PUF key generation and management peripheral — delivering all-round protection and keeping every household safe.
Recommended MCU
- LPC55S00 series: LPC55S69: the world's first microcontroller based on the general-purpose Cortex®-M33; built on the Arm®v8-M architecture with TrustZone-M, a coprocessor and a dual-core design; raises the balance of performance and power consumption, together with the level of advanced security, to new heights; a proprietary DSP accelerator cuts computation time by 10x compared with CMSIS-DSP; based on 40nm NVM process technology for cost-effectiveness
Core Components
- MCU: LPC55S69 (NXP)
- BLE: NXP, full part number available on request
- NFC: NXP / Fudan Micro, full part number available on request
- SE: NXP, full part number available on request
- RTC: NXP, full part number available on request
- Audio Amp: NXP, full part number available on request
- EEPROM: onsemi, full part number available on request
- Flash: ISSI, full part number available on request
- Back Light: ISSI, full part number available on request
- H-Bridge: MPS, full part number available on request
- DCDC: MPS, full part number available on request
- LDO: HTC Korea, full part number available on request
- LDO: ZLG Microelectronics, full part number available on request
Key Advantages
- High integration
- High security
- Voice prompts
- Proven demo
- Chinese-language development documentation
- All-round technical support
E-Lock-55-630, E-Lock-55-17510
Built-in integrated fingerprint algorithm
Low false acceptance and false rejection rates for fingerprint recognition
No noticeable key lag, low mis-operation rate
Low-power card detection and card reading, with card reading taking priority over the keypad
Keypad and card-reading signals do not interfere with each other
Bluetooth connection to a gateway for cloud access, enabling remote monitoring
Plays audio stored in external Flash

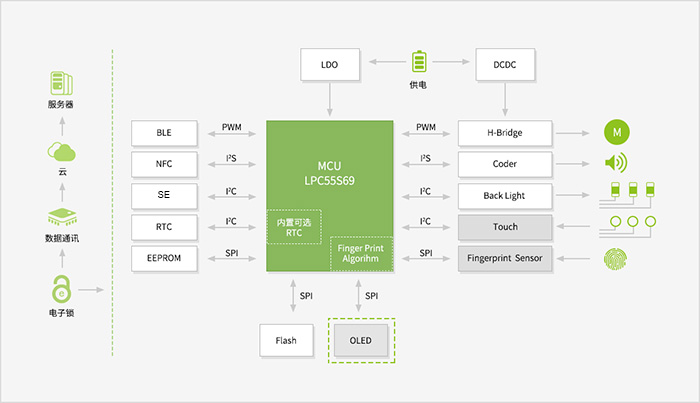

Functional Block Diagram
