As the smart home market has taken off, the smart lock industry has turned into a three-way battle royale. Not only are traditional mechanical lock makers transforming themselves and moving into smart locks; giants such as Haier, Dahua, Hikvision, ZTE, Midea and 360 have also entered the smart lock business; and in recent years internet-native smart lock brands such as Yunding, Guojia and Yunyou have appeared as well... To stand out from the crowd and come out on top, our E-LOCK solution will help you take off.
Solution Overview
This is a smart cloud lock solution we designed and developed based on requirements common to hundreds of manufacturers and on the direction the market is taking. It uses an NXP main controller platform, with a single MCU delivering main control, touch-key drive and voice functions, and power management that goes beyond expectations — achieving genuinely low power consumption and outstanding cost performance.
Recommended MCU
- Kinetis L series: KL16: the MCU integrates a touch-key driver and DAC voice playback, so customers can flexibly choose between the built-in or an external touch-key driver as required; adding a single external flash makes voice control easy to implement; card reading supports ISO/IEC 14443 A/B and LPCD — in low-power mode it periodically polls for cards in the RF field, with an effective detection range up to 2.5cm; MCU + touch drive draws as little as 10uA, and MCU + touch drive + LPCD card reading as little as 20uA; a platform-based solution with modular functions, together with our own demo board and software development package, makes development easier and accelerates time to market
Core Components
- MCU: KL16 (NXP)
- AUDIO POWER AMPLIFIER: ISSI, full part number available on request
- Flash: MXIC, full part number available on request
- LDO: HTC Korea, full part number available on request
- NFC: NXP, full part number available on request
- NFC: Fudan Micro, full part number available on request
Key Advantages
- Low power consumption and low cost
- Mature demo platform
- Modular functionality
- Visual debugging
- Chinese-language development documentation
- Comprehensive technical support

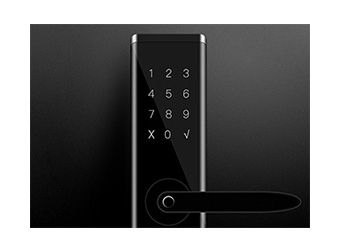

E-Lock-630 / E-Lock-17510
MCU with integrated touch keys
Ultra-low power: MCU + touch + card reading draws as little as 20μA
Card reading supports LPCD, with an effective detection range up to 2.5cm
Built-in MCU DAC for voice prompts
Uses NXP Touch Lib for environment tracking and strong interference immunity
Supports the latest under-screen fingerprint recognition

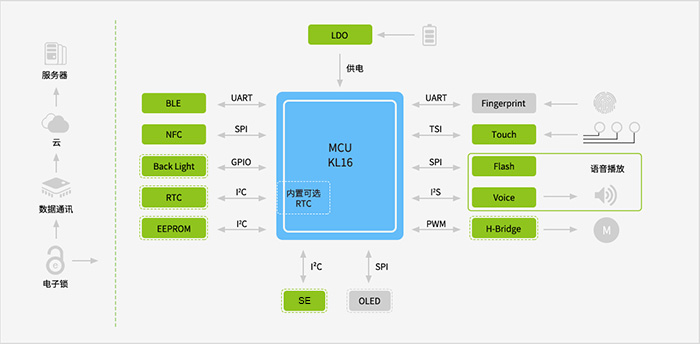

Functional Block Diagram
