Automotive RF receiver modules receive and process all of the vehicle's RF signals, including PKE, RKE and TPMS, and are required to support multi-frequency reception.
Solution Overview
This solution is built on the NXP NCK291x series. The NCK2910 is configured over SPI; once configured at power-up it enters autonomous POLLING, and after an RF signal is received it passes the RF data to an external MCU via interrupt. The NCK2912/NCK2913 expose their internal MCU, allowing users to program RF data handling directly within the RF software framework. The NCK2910/NCK2912 support single-channel, multi-frequency time-multiplexed reception, while the NCK2913 supports three-channel, multi-frequency simultaneous reception. All of these devices feature dual-antenna switching, making them well suited to wide frequency-hopping applications.
Recommended MCU
- S32K144
- KEAZ128 (alternative)
- S12 series (alternative)
Recommended Devices
- NCK2910
- NCK2912 (alternative)
- NCK2913 (alternative)
Core Components
- Automotive MCU: S32K144 (NXP)
- Automotive MCU: KEAZ128 (NXP)
- RF IC: NCK2913 (NXP)
- RF IC: NCK2910 (NXP)
- RF IC: NCK2912 (NXP)
- Crystal: JYEG, full part number available on request
Applications
Remote Keyless-Entry Systems (RKE), Passive Keyless Entry Systems (PKE), Tire Pressure Monitoring System (TPMS)
Reference Design Lizard USB Board
- NCK2910 RF receiver IC
- On-board USB2SPI Cable for host-PC debugging
- CDK software provided for easy debugging, evaluation and configuration parameter generation
- Complete hardware design documentation
- Complete software design documentation
Reference Design MantraCV2 USB Board
- MantraCV2 RF transmitter board
- On-board USB2USART Cable for host-PC debugging
- IREC software provided for fast configuration of RF transmit parameters, usable for debugging the NCK2910 receiver

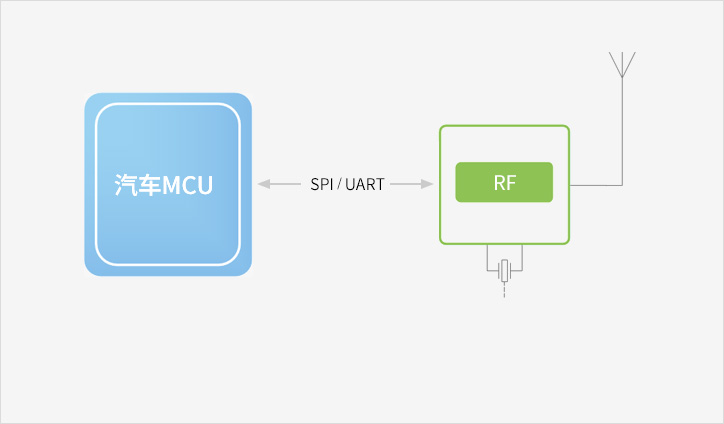

Functional Block Diagram
