A pelvic floor rehabilitation device is an instrument used for routine diagnosis and examination of pelvic floor function and for the treatment of pelvic floor dysfunction. By screening the degree of pelvic floor muscle damage in the patient and evaluating the screening results for pelvic floor muscle function, it allows the appropriate treatment to be applied. This solution uses biofeedback technology together with an MCU main controller, Bluetooth, power supply, charging IC and other module devices, and works with a smartphone app to display more detailed and intuitive data.
Solution Overview
The home pelvic floor rehabilitation device solution uses the NXP KL16 low-power MCU as the main controller, and charges the system lithium battery with a linear charging IC whose battery reverse leakage current is less than 1μA; a Bluetooth module links the device to the control app on the phone, making the displayed data far more intuitive. For this solution we can supply the core component modules, offering customers a maximized one-stop procurement service.
Recommended MCU
- Bluetooth module: ZLG52810: a new-generation BLE5.0 transparent transmission module; low power, low cost and small form factor; compatible with serial port command control for simple operation; higher security; richer functionality
Core Components
- MCU: MKL16Z32 (NXP)
- LDO: ZL6205 (ZLG Microelectronics)
- Charging IC: MPS, full part number available on request
Key Advantages
- Low power consumption, low cost
- Stable Bluetooth communication
- Low power consumption of the Bluetooth module
- High Bluetooth module signal strength
- Connects to a smartphone app
- More intuitive data display

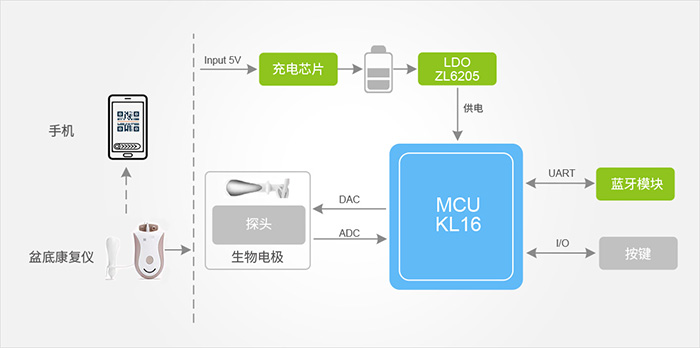

Functional Block Diagram
