Building on market demand and technology trends in the e-cigarette sector, we offer a family of low-cost e-cigarette solutions spanning entry-level, mid-range and high-end tiers. The solution supports both OLED displays and color touch displays, delivers up to 100W of heating power, and supports driverless firmware upgrade over USB HID. A complete hardware and software development package is provided, helping customers finish product development quickly and get to market faster.
Solution Overview
The main controller is the LPC54113 (M4 core); its high clock speed and processing performance easily drive a 2.4-inch capacitive TFT touch panel. The display offers rich color, powerful features and a fast refresh rate, greatly improving both visual quality and the feel of the user interface. The power stage uses a half-bridge driver IC together with MOSFETs to form a full-bridge buck-boost circuit that delivers up to 100W of power control to the atomizer coil. Voltage and current feedback is sampled to correct the output power in real time, keeping the device in constant-power or constant-temperature operation; at the same time a thermistor monitors board temperature to prevent overheating. The solution is programmed on the AMetal platform for rapid application development.
Recommended MCU
- LPC5411x family: LPC54113 — dual processor cores: Arm® Cortex®-M4 + Arm® Cortex®-M0+; both running at up to 100MHz; up to 256KB Flash and 192KB SRAM; up to 48 general-purpose GPIOs; ROM API support
- Kinetis L family: KL26 — 48MHz Arm® Cortex®-M0+ core; 256KB Flash and 32KB RAM; active power as low as 50μA/MHz; static power as low as 2μA with full state retention and 4.5μs wake-up
Core Components
- MCU: LPC54113J256BD64 (NXP)
- MCU: MKL26Z128VFT4 (NXP)
- RTC: NXP, full part number available on request
- MOSFET: Nexperia, full part number available on request
- DC-DC: MPS, full part number available on request
- Charge IC: MPS, full part number available on request
- Pre-Drive: onsemi, full part number available on request
- LDO: onsemi, full part number available on request
- Current Sense: onsemi, full part number available on request
- Flash: ISSI, full part number available on request
Key Advantages
- High output power
- Temperature control support
- emWin GUI design
- Driverless firmware upgrade
- Full documentation package released
- End-to-end technical support
Reference Design
- Temperature control support, heating power up to 100W
- Supports 320×240 resolution color touch display
- Officially licensed emWin for fast UI development
- Driverless firmware upgrade over USB HID
- Complete solution documentation package to shorten the development cycle
- Distribution of all key components to lower development cost
- Strong technical support and service team

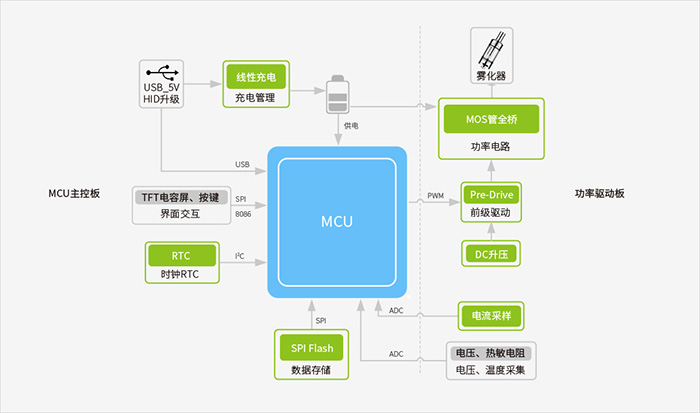

Functional Block Diagram
