A heat-not-burn device warms the tobacco shreds instead of burning them, typically using one of the heating structures shown below: needle heating, a ceramic heating plate, or ring-shaped ceramic heating. Constant-temperature heating control is the method commonly used. By baking the tobacco to below 350℃ the cigarette never combusts, so there is no open flame and no burnt-tobacco taste; the lower temperature releases the true flavour of the tobacco while producing an extremely low level of tar.
Solution Overview
Our heat-not-burn device solution uses the ZLG116 as the main controller, together with the MP26028 linear charger — whose battery reverse leakage current is below 1μA — to charge the system lithium battery. Output power is controlled by chopping a MOSFET so that real tobacco is baked at low temperature, while a current-sense IC, the MCU's built-in 12bit ADC and a temperature sensor together hold the baking temperature rock steady. We can supply the core components for this solution and offer customers a maximized one-stop sourcing service.
Recommended MCU
- IoT MCU: ZLG116: operating frequency up to 48MHz; integrated 24-bit ADC; rich set of enhanced I/O ports; multiple power-saving operating modes; AMetal SDK development standard
Core Components
- MCU: ZLG116 (ZLG Microelectronics)
- LDO: ZL6205 (ZLG Microelectronics)
- Current-sense IC: onsemi, full part number available on request
- Charger IC: MPS, full part number available on request
- MOSFET: Nexperia, full part number available on request
Key Advantages
- Heats real tobacco — low-temperature baking without combustion
- Substantially reduced tar for a healthier experience
- Supports different flavours
- Faithfully reproduces the taste of a real cigarette

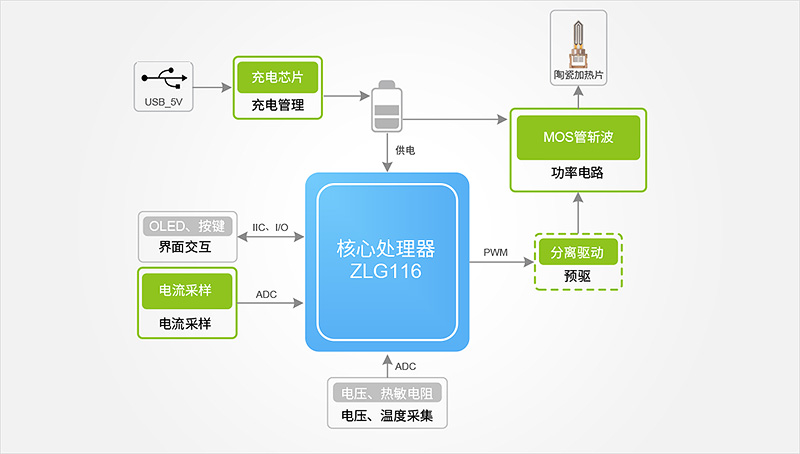

Functional Block Diagram
