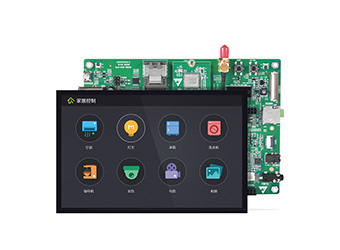

The Gateway Smart Panel Solution is a panel platform for professional audio systems, home and building automation, industrial HMI vision and automation, consumer and healthcare applications. Through a WIFI/BT module it interconnects every device in the home, giving a clear overview of the whole installation, and serves as the control panel for the smart home and the operating hub for all connected devices.
Solution Overview
In this solution the LCD is a fully laminated display-and-touch module: the touch panel communicates over IIC and the display over MIPI-DSI. Some of the optional modules in the block diagram overlap in function and can be selected according to the actual application.
Recommended MCU
- i.MX 8M Mini series – MIMX8MM6CVTKZAA: 4× Cortex®-A53 running at up to 1.8GHz; 1× Cortex®-M4 running at up to 400MHz; 2D/3D GPU with OpenGL ES 2.0 support; up to 1080p60 H265 decoding and H264 encoding; 1× MIPI-DSI display output and 1× MIPI-CSI camera input; Linux and Android operating system support; industrial operating temperature range -40℃~105℃ Tj
Core Components
- MPU: MIMX8MM6CVTKZAA (NXP)
- Codec: NXP, full part number available on request
- PMIC: NXP, full part number available on request
- RTC: NXP, full part number available on request
- DDR3L: ISSI, full part number available on request
- EMMC: ISSI, full part number available on request
- Flash: ISSI, full part number available on request
- DCDC: MPS, full part number available on request
Key Advantages
- High performance
- High reliability
- Development documentation in Chinese
- Comprehensive technical support
Reference Design IMX8M-MINI-EVB
- Supports embedded Linux;
- Supports multiple audio interfaces including Synchronous Audio Interface (SAI) and 8-channel Pulse Density Modulation (PDM);
- Accepts external touch screen, camera, WIFI & BT and other modules;
- Supports USB, PCIE and other expansion interfaces;
- Industrial operating temperature range -40℃~85℃

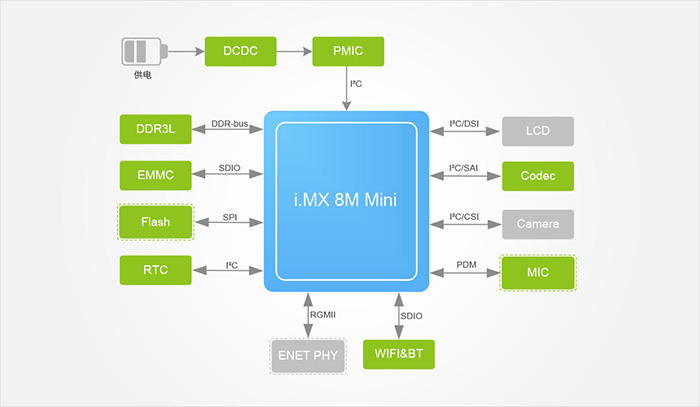

Functional Block Diagram
