The NCF3320 is an automotive-grade NFC transceiver from NXP designed for automotive secure access applications. In addition to combining high RF power output with strong multi-protocol support, it delivers outstanding low-power and card detection performance, making it an ideal choice for door handle applications.
Key Points
- Supports multiple protocols, including ISO/IEC 14443 A/B, FeliCa and ISO/IEC 15693
- Supports P2P passive initiator mode compliant with ISO/IEC 18092
- Wide RF chip driver voltage range with strong driver output current capability
- Enhanced wake-up (low-power card detection) mode ensures robust and sensitive card detection
- Antenna connection with a minimum of external components
Solution Overview
Our NFC card reader solution based on the NCF3320 uses the S9KEAZN64 as the main controller and supports LIN communication, allowing it to communicate with LIN nodes in the vehicle's electronic system to deliver NFC access control.
Recommended MCU
- S9KEAZN64
Core Components
- Automotive MCU: S9KEAZN64 (NXP)
- NFC: NCF3320 (NXP)
- LIN transceiver: NXP, full part number available on request
- LDO: MPS, full part number available on request
Applications
Automotive NFC access control, Bluetooth connectivity
Reference Design NCF3320 EVB
- Automotive-grade chips for safety and reliability
- Low quiescent current with low-power card wake-up support
- Supports multiple card reading protocols including ISO/IEC 14443 A/B, ISO/IEC 15693 and FeliCa
- Stable, reliable and efficient antenna design
- LIN transceiver compliant with LIN2.1/SAE J2602
- Complete hardware design reference materials
- Complete software design reference materials

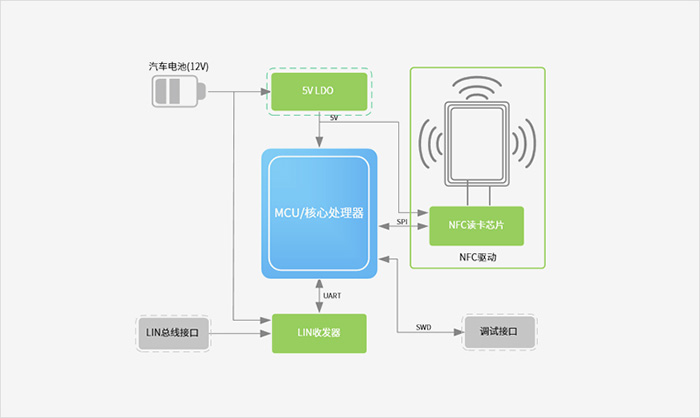

Functional Block Diagram
