We have invested continuously in full digital automotive instrument cluster applications. From digital clusters to all kinds of in-vehicle displays, from 5-inch to 12.3-inch, we cover every use case, with resolutions ranging from 480*480 to 1920*720; we have successful in-house/custom project experience on all mainstream processor models along with a deep base of hardware and software support, meeting a wide range of customer development needs; empowered by open-source GUI frameworks, we maintain a customized branch dedicated to full digital automotive clusters that supports vector canvas, multiple layers and pseudo-3D display extensions, maximizing the multimedia performance of the MCU and satisfying the core parameter requirements of instrument clusters.

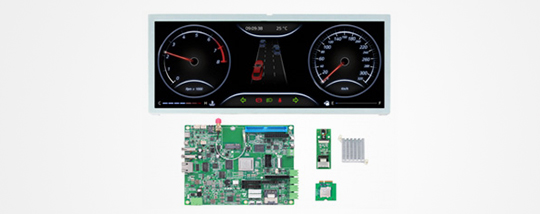

Full-Scenario In-Vehicle Display Solutions
- Digital Instrument Cluster

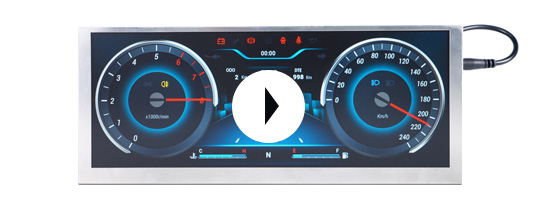

12.3-inch Full Digital Cluster
- Pointer-style UI, tech-style UI, iACC UI
- Fast-boot Linux system
- 1920×720 high-definition resolution
10.25-inch Full Digital Cluster
- Pointer-style UI, tech-style UI, iACC UI
- Low-power design, supports CAN wake-up
10-inch Navigation Cluster
- Multi-layer design, 360° surround-view input
- Customization support with independent function modules
7-inch Full Digital Cluster
- Multiple driving modes
- 800×480 resolution
7-inch Combination Cluster
- Driving and ADAS display
- 800×480 resolution
- Customization support with independent function modules
5-inch Full Digital Cluster
- Driving and ADAS display
- 800×480 resolution
- Customization support with independent function modules
- Rear HVAC Control Panel
HD Rear HVAC Panel
- Time display
- 3D airflow animation
- Music playback control
- Ambient lighting control (with color picker)
- Rear Armrest Panel
Door Armrest Panel
- 3D airflow animation
- HVAC temperature and airflow adjustment
- Privacy (smart) glass control
Rear Armrest Display
- HVAC temperature and airflow adjustment
- Seat adjustment
- Music playback control
- Ambient lighting control (with color picker)
- Electronic Rear-View Mirror
AHD Solution
- Supports up to 4 AHD cameras simultaneously
- Resolution up to 1080p
- System imaging latency as low as 88ms
SerDes Solution
- Supports up to 4 GMSL cameras simultaneously
- Resolution up to 1280x960
- System imaging latency as low as 48ms
Functional Block Diagram
